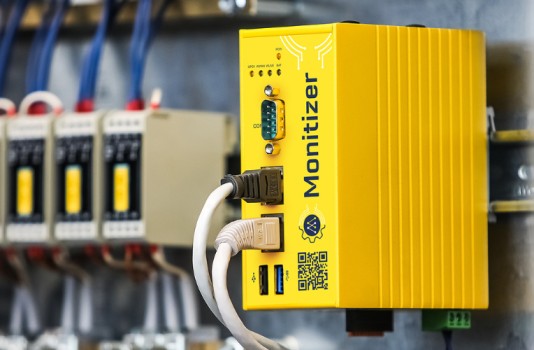

The NoriGate Manual

Note: We recommend supplying the NoriGate with uninterrupted external power to avoid influence the machine control system.

Tools:

• T1 Screw driver - 2.5 mm diameter head 1

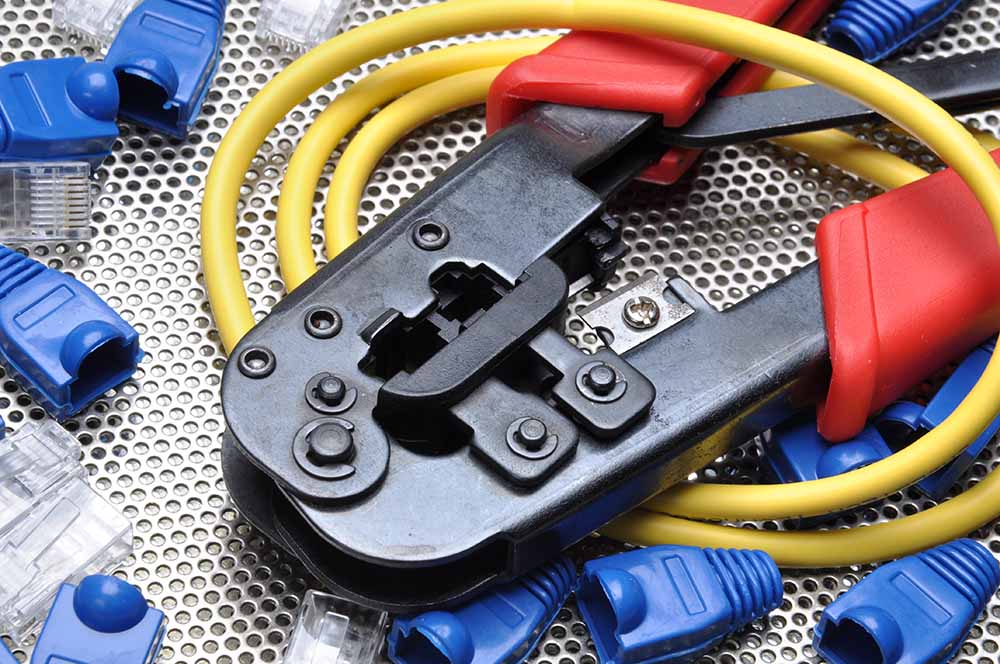

• T2 Crimping tool 1
• T3 Wire stripper 1

Parts:

• 5 Ethernet cable 2m, Cat6 2
• 6 Stranded hook-up wire for plus - blue, 2m 1
• 7 Stranded hook-up wire minus - red, 2m 1
• 8 Stranded hook-up wire for ground - yellow-green, 2m 1
